◆ Product Advantages

● High color consistency .  Use Al Heat-sink to ensure heat dissipation.  Silicone potting, IP Level: IP20.  170°Beam Angle, High Efficiency, High Uniformity Lens

● Shutter-type installation easy operation

● Usually 20pcs in a group; but need two-terminal power supply

● Product features

● Input Voltage: DC12V/DC24V

● Efficiency: 100lm/ W

● Luminous: 1200lm/pc

● Lifetime: > 30000 hours

◆ Applications

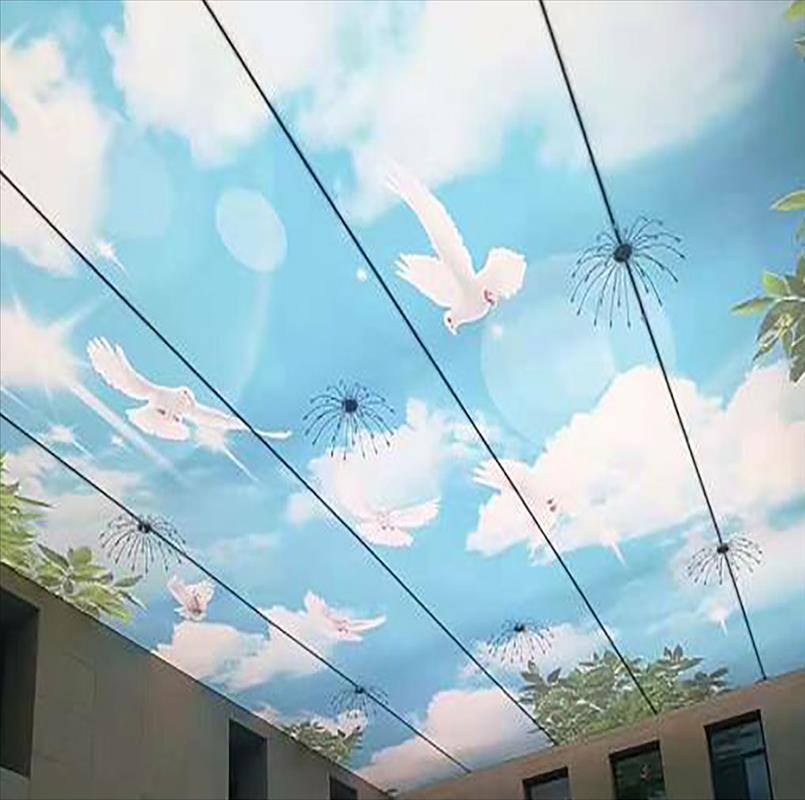

● Best for 3.5-10 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc.

◆ Parameters

◆ Light distribution:

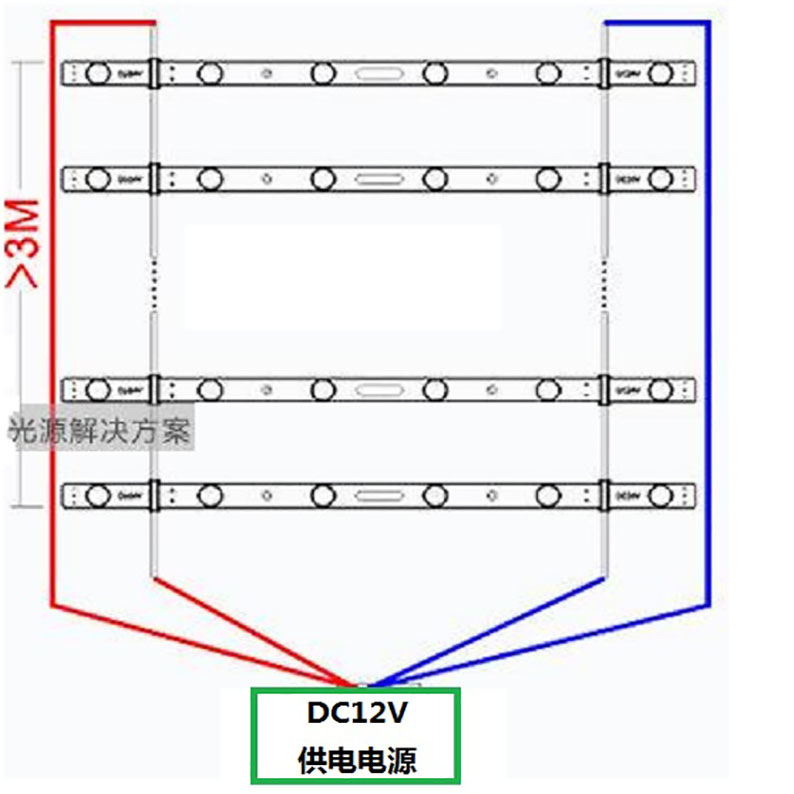

◆ Connection and installation:

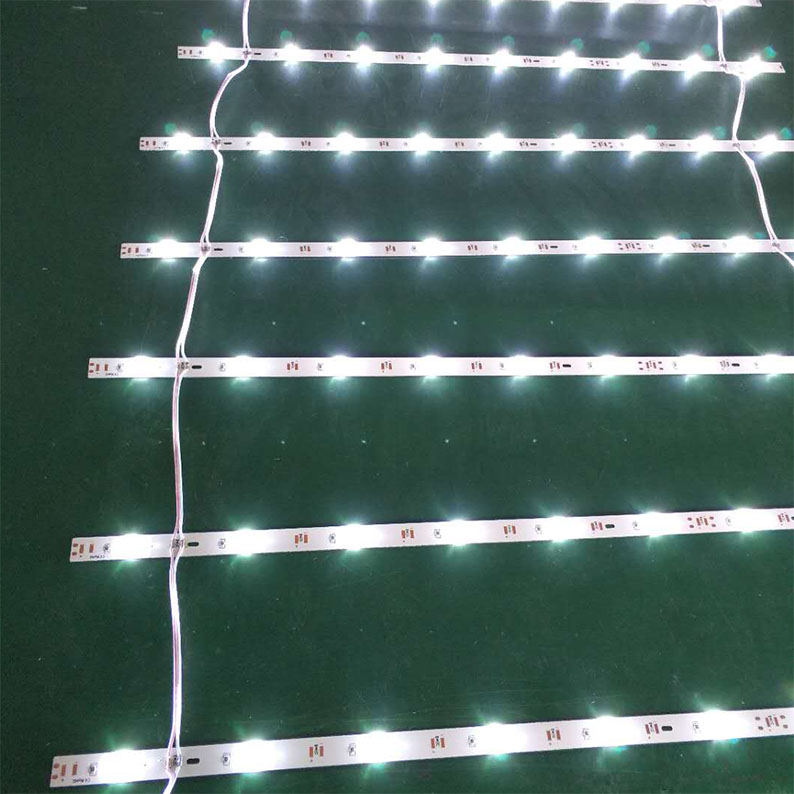

 LED rigid bar+ LED power supply

Shutter-type installation easy operation

◆ Package information:

The carton size: 1080*290*250;480 PCS/BOX.

◆ Installation Guide:

● The strip itself and all its components could not be mechanically stressed.

● Assembly must not damage or destroy conducting paths on the circuit board. The installation must be carried out by qualified personnel;

● Please check correct electrical polarity before connection. Wrong polarity may destroy the strip;

● Usually 20m in a group; but need two-terminal power supply;

● Cut the strips only along the appropriate marks;

● Rigid bar must be installed in a suitable environment. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements

● Before any application it is advisable to clean the surface where the strip will be

installed;must be glued to a thermal-conductive surface, preferably aluminum.
