◆ Features

● Take 3030/2835 LED as light source, make the color uniform, good consistency;

● Die-casted shell molding process, good and unique appearance. And good heat dissipation effect and can reach IP65

● High efficiency chip, high brightness and reliability

● Long life span

● DC12V Low voltage input. Constant voltage design. environment friendly

● 30pcs modules a string. Using a series-parallel mixed design. You can cut at random module.


◆ Applications

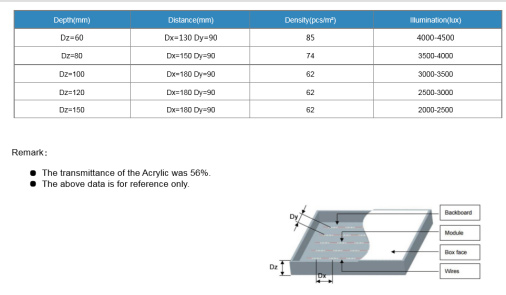

Widely used in 6 ~ 25 cm the thickness of the advertising signage, lighting box

◆ Parameters

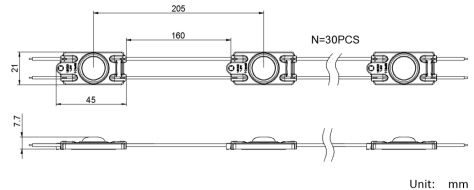

◆ Dimensions (mm)

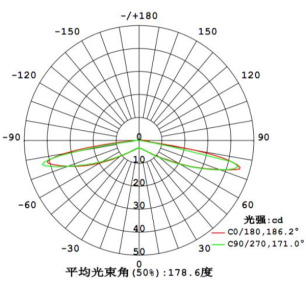

◆ Lighting Distribution Curve

◆ Attentions

● Maximum number of the modules per chain is 20 pcs if power to single end.

● The parameters may change as the material of lighting box or channel letters.

● The Led modules including its relate components can’t be mechanically pressed.

● Please make sure the power supply is enough to operate the total load.

● Only professionals can tear down, install or maintain LED modules.

● All of tools used for installation need meet anti-flame rules.

● Power supply should have short circuit and over load protection.and total power should be less than rated power 80% of that power.

● Working  temperature：-25～55℃.

◆ Package information:

20pcs modules per chain; 2chains per anti-static bag; 20bags per carton;Total 800pcs in one carton.

Carton size；46*27.5*28.5cm；   N.W：12.2±5％Kg；  G.W：13.2±10％Kg
